Aluminium Pontoon Boats

When taking advantage of every area of space is a must, our console range is the perfect fishing and diving solution.

The Console range encompasses three different sizes of boat, from 4.0 metres in length to 5.0 metres. Built, as are all our boats, from tough, Marine Grade aluminium, they come with a choice of different internal layouts to suit your use and requirements.

Click here to download our pdf brochure.

+ Osprey 380SC Console

Same hull & sides as our S model but console either central or to one side. Bow rail extending back to the console and ice bin for the seat. With remotes & steering it has the feel of a much larger craft, perfect for the set line or flounder netting. So easy for 1 person to handle alone.

Standard features

Rear bench seat with squab
Steering - Cable
Hand Rails
Anchor Storage / Seat
Tie Point for Anchor Rope
Rear Steps, Platforms
Tread Plate Floor
Drain Bung
Bilge Pump
Battery Shelf & Box & Switch
6-Way Switch Panel
Keel Wear Strip
4 Rod Holders
Osprey Wiring Loom
"Osprey" Graphics and Stripe

Optional extras

Extra Rod Holders
Ladder
Paint Sides - Solid or Metallic
Paint Pontoons - Solid or Metallic
U Dek
Anchor Pack
Alloy "ELERT" Single Axle Trailer
RailBlaza Bait Station
Casting Platform
Nav Lights & Anchor Light
USB & 12V Socket
Electronics

Specifications

Overall Length
Overall Beam
Int. Beam
Hull Weight approx
Deadrise, transom
Transom L
Pontoon thickness
Hull thickness
Inherant buoyancy
Recommended hp
Maximum hp
Max Load, Adults

3.90M
1.69M
1.13M
155kg
12.5deg.
20 inch
2.50mm
3.00mm
650kg
25-30hp
30hp
3

+ Osprey 420SC Console

Standard features

Sliding bench seat with squabs
Steering - Cable
Casting platform with side step
Fairlead
Anchor Storage
8 Rod Holders
Rear Step, Platform
Tread Plate Floor
Hand Rails
Drain Bung
Railblaza Bait Station
Bilge Pump
Osprey wiring loom
6-Way Switch Panel
Keel Wear Strip
"Osprey" Graphics and Stripe

Optional extras

Anchor Pack
Auxiliary Bracket
Extra Rod Holders
U Dek
Electronics
Ladder
Wash down pump
Paint Sides - Solid or Metallic
Paint Pontoons - Solid or Metallic
Alloy "ELERT" Single Axle Trailer
Nav Lights & Anchor Light
USB & 12V Socket

Specifications

Overall Length
Overall Beam
Int. Beam
Hull Weight approx
Deadrise, transom
Transom L
Pontoon thickness
Hull thickness
Inherant buoyancy
Recommended hp
Maximum hp
Max Load, Adults

4.35M
1.85M
1.22M
240kg
18deg.
20 inch
2.50mm
3.00mm
1030Kg
40hp
50hp
3

+ Osprey 450CC/SC Console

The BIG little console boat, get out amongst the kingi’s trolling or towing the dredge for a fresh feed of scallops. With a couple of mates on board the 450 console series is the perfect vessel to get out there on a modest budget. With plenty of storage in the side pockets and the addition of a bait station just screams take me fishing! Coupled with a 40hp
on the back and you will be at your destination in no time.

Standard features

Ice box seat OR Pedestal Seat
Rear Shelf with Access Hatches
Fairlead and Bollard
Steering - non feedback
Anchor Storage
4x Rod Holders
Rear Step, Platform
Rails
Drain Bungs
Bilge Pump
Front Seat
Windscreen
Osprey Wiring Loom
Tread Plate Floor
Keel Wear Strip
6-Way Switch Panel
"Osprey" Graphics and Stripe

Optional extras

Paint Sides - Solid or Metallic
Paint Pontoons - Solid or Metallic
Wash down pump
Underwater lights
Sliding Rear Seat
Bait Station Pro
Bait Station Deluxe
Auxiliary Bracket
Extra Rod Holders
Walk Through transom
Ladder
Live Bait Tank
Bimini Frame and Cover
Nav Lights & Anchor Light
Under Floor Fuel Tank
Anchor Winch, Maxwell RC6
Anchor Pack
USB & 12V Sockets
U Dek
Electronics
Casting Platform with Step
Alloy "ELERT" Single axle Trailer
Ski Pole
Fusion Stereo & Speaker Package

Specifications

Overall Length
Overall Beam
Int. Beam
Hull Weight approx
Deadrise, transom
Transom L
Pontoon thickness
Hull thickness
Inherant buoyancy
Recommended H.P.
Maximum H.P
Max Load, Adults

4.80M
1.86M
1.22M
350kg
18deg.
20 inch
2.50mm
4.00mm
1110kg
50-60hp
70hp
4

+ Osprey 495CC/SC Console

All you could ask for in a 5.0M boat with choice of either centre or side console, hydraulic steering and room on the dash for all your electronic gizmo's. This is the beginning of the serious fishing boat range with rod holders galore, bow rail extending back to the console and ice bin for the seat. Plenty of storage, ideal for bringing back the catch in prime condition.

Standard features

Swivel Seat or Chilly Bin Seat
Steering - Cable
Rear Shelf with Access Hatches
Fairlead and Bollard
Anchor Storage
4x Rod Holders
Rear Step, Platform
Tread Plate Floor
Rails
Drain Bung
Bilge Pump
Windscreen
Osprey Wiring Loom
Casting platform with Step
Keel Wear Strip
6-Way Switch Panel
"Osprey" Graphics and Stripe

Optional extras

Sliding Rear Seat
Bait Station Pro
Bait Station Deluxe
Auxiliary Bracket
Extra Rod Holders
Walk Through transom
Ladder
Wash down pump
Under Floor Fuel Tank
Ski Pole
Paint Sides - Solid or Metallic
Paint Pontoons - Solid or Metallic
Electronics
Nav Lights & Anchor Light
Underwater Lights
Alloy "ELERT" Single Axle Trailer
U Dek
USB & 12V Socket
Live Bait Tank
Anchor Winch Maxwell RC6
Anchor Pack
Fusion Stereo & Speaker Package

Specifications

Overall Length
Overall Beam
Int. Beam
Hull Weight approx
Deadrise, transom
Transom L
Pontoon thickness
Hull thickness
Inherant buoyancy
Recommended H.P.
Maximum H.P
Max Load, Adults

5.45M
1.97M
1.34M
430kg
20deg.
20 inch
2.50mm
4.00mm
1325kg
90hp
100hp
5

+ Osprey 520SC/CC Console

Standard features

Optional extras

Paint Sides - Solid or Metallic
Paint Pontoons - Solid or Metallic
Wash down pump
Underwater lights
Sliding Rear Seat
Bait Station Pro
Bait Station Deluxe
Auxiliary Bracket
Extra Rod Holders
Walk Through transom
Ladder
Live Bait Tank
Bimini Frame and Cover
Nav Lights & Anchor Light
Under Floor Fuel Tank
Anchor Winch, Maxwell RC6
Anchor Pack
USB & 12V Sockets
U Dek
Electronics
Casting platform with Step
Alloy "ELERT" Single axle Trailer
Ski Pole
Fusion Stereo & Speaker Package

Specifications

Overall Length
Overall Beam
Int. Beam
Hull Weight approx
Deadrise, transom
Transom XL
Pontoon thickness
Hull thickness
Fuel Tank
Inherant buoyancy
Recommended H.P
Maximum H.P
Max Load, Adults

5.80M
2.25M
1.50M
600kg
23deg.
25 inch
3.00mm
5.00mm
100L
1735kg
90hp
150hp
6

+ Osprey 565CC Console

Standard features

Optional extras

Paint Sides - Solid or Metallic
Paint Pontoons - Solid or Metallic
Wash down pump
Underwater lights
Sliding Rear Seat
Bait Station Pro
Bait Station Deluxe
Auxiliary Bracket
Extra Rod Holders
Walk Through transom
Ladder
Live Bait Tank
Bimini Frame and Cover
Nav Lights & Anchor Light
Under Floor Fuel Tank
Anchor Winch, Maxwell RC6
Anchor Pack
USB & 12V Sockets
U Dek
Electronics
Casting platform with Step
Alloy "ELERT" Single axle Trailer
Ski Pole
Fusion Stereo & Speaker Package

Specifications

Overall Length
Overall Beam
Int. Beam
Hull Weight approx
Deadrise, transom
Transom XL
Pontoon thickness
Hull thickness
Fuel Tank
Inherant buoyancy
Recommended H.P
Maximum H.P
Max Load, Adults

6.25M
2.25M
1.50M
615kg
23deg.
25 inch
3.00mm
5.00mm
120L
1735kg
100hp
150hp
7

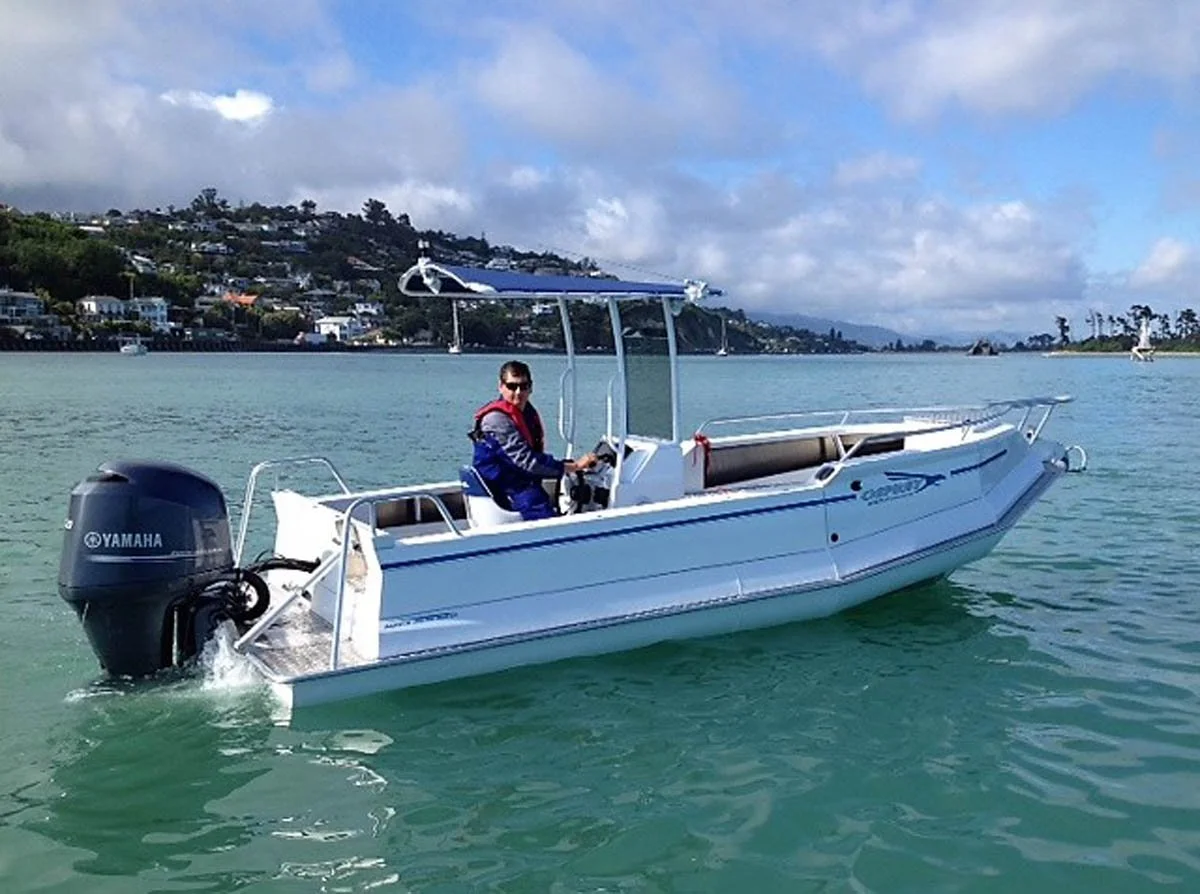

+ Osprey 590CC Console

Standard features

Ice Box Seat OR Pedestal Seat
Rear Shelf with Access Hatches
Fairlead and Bollard
Steering - non feedback
Anchor Storage
4x Rod Holders
Rear Step, Platform
Rails
Drain Bungs
Bilge Pump
Front Seat
Windscreen
Osprey Wiring Loom
Tread Plate Floor
Keel Wear Strip
6-Way Switch Panel
Underfloor Fuel Tank
"Osprey" Graphics and Stripe
Bimini Frame and Cover
Nav Lights & Anchor Light
Under Floor Fuel Tank
Anchor Winch, Maxwell RC6
Anchor Pack
USB & 12V Sockets
U Dek
Electronics
Casting platform with Step
Alloy "ELERT" Single axle Trailer
Ski Pole
Fusion Stereo & Speaker Package

Optional extras

Specifications

OA Length
OA Beam
Int. Beam
Hull Weight approx
Deadrise, transom
Transom XL
Pontoon thickness
Hull thickness
Fuel Tank
Inherant buoyancy
Recommended H.P.
Maximum H.P
Max Load, Adults

6.50M
2.25M
1.50M
660kg
23deg.
25inch
3.00mm
5.00mm
150L
1890kg
115hp
150hp
8

Note: Other sizes and custom layouts can be priced upon request
